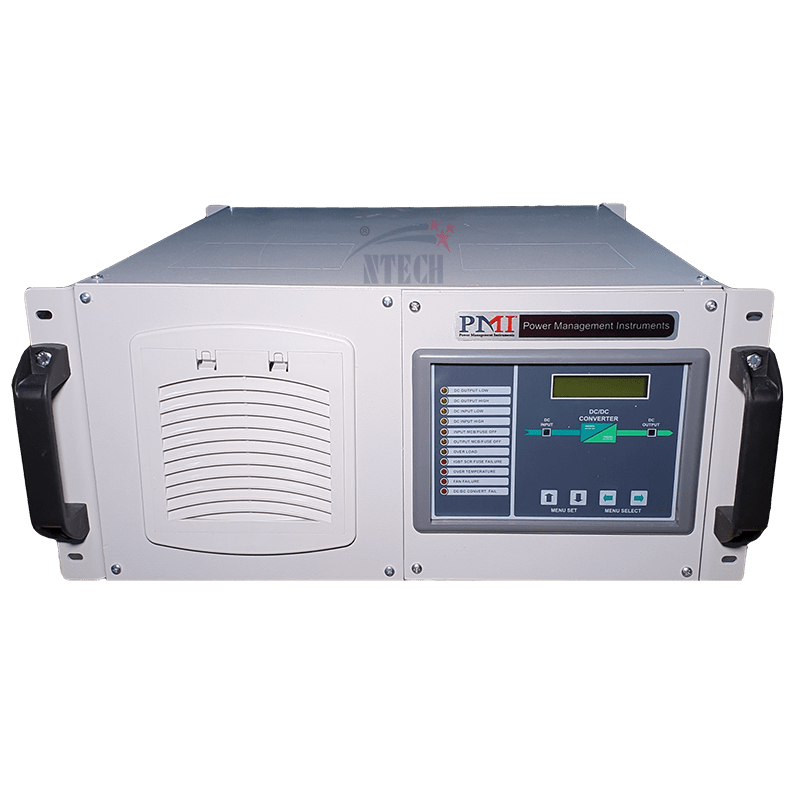

BỘ CHUYỂN ĐỔI NGUỒN AC/DC INVERTER
0₫
Hãng: PMI </br>
Tình trạng: còn hàng </br>
Xuất xứ: Thổ Nhĩ Kỳ
Liên hệ để chúng tôi tư vấn tốt nhất 098 639 9898
- Optimum power distribution independent of each phase voltage
- 6 pulse IGBT module topology
- Low filter loss thanks to 20 kHz switching frequency
- High conversion efficiency
- High accuracy MPPT technology
- High yield at low irradiance levels
- Automatic reactive current and power factor control
- Sinusoidal inverter output with < 3 % total harmonic current distortion (ITHD)
- Display advanced parameter graphical display
- Short Circuit, Over Current, Over Voltage Protections at Output
- Thermic Over Current Fuse with Indicator, DC Over Voltage and EMI-RFI Filter at Input
- More than 200.000 hrs MTBF with More than 20 years life time
- Industrial grade front access cabins, easy maintenance
- Customized output isolation transformer design to suit different voltage levels and frequency
- Advanced communications via Modbus TCPIP or Modbus RTU with local or remote configuration and monitoring
- Power ratings from 10 kW up to 200 kW with N+1 configuration
- Full nominal power up to 45 °C Smart fan controlling system to optimize the efficiency
| GENERAL | |
|---|---|
| Model | ON-GRID |
| Topology | Six Module IGBT High Frequency Switching Inverter With Output Isolation Transformer |
| Control | DS PIC Controlled |
| 1Phase Power Options | 6 / 10 / 20 / 30 /40 kW |
| 3Phase Power Options | 10 / 20 / 30 / 40 / 60 / 80 / 100 kW |
| Overall Efficiency | >90% (1 Phase) / >93% (3 Phase) |
| Over Load Capacity | 10 min for 110% |
| Isolation Voltage | 2.500 VAC (Input-Output, Input-Chassis, Output-Chassis) |
| Grid DC Connection |
Sequence Rail Terminal (+/- DC) |
| INPUT | |
|---|---|
| Input DC Voltage, MPPT | 300-350 VDC (1 Phase) ; 500-600 VDC (3 Phase) |
| Min-Max Input DC Voltage | 250-450 (1 Phase); 300-700 (3 Phase) |
| Input Protection | Thermic Over Current Fuse With Indicator, Over Voltage and EMI-RFI Filter |
| Instant Voltage and Pulse Protection | IEEE 587 (4500 A, 110 Joules) |
| OUTPUT | |
|---|---|
| Output Voltage | 220/230 VAC (1 Phase) ; 380/400 VAC (3 Phase, Each phase output power independently controlled) |
| Output Voltage Tolerance | ±10% |
| Output Frequency | 50 – 60 Hz (On request) |
| Output Frequency Tolerance | ±2% Synchronized on Mains |
| Output Waveform | Fully Sinusoidal, THD <3% |
| Output Protection | Short Circuit, Over Current, Over Voltage and Over Temperature |
| Output Transformer | Galvanically Isolated |
| ON-GRID GROUP | |
|---|---|
| Grid Number 1 Phase | 12 Grid In Series, MPPT Grid Voltage 26-28 VDC, 10 Grid In Series, MPPT Grid Voltage 33-36VDC |
| Grid Number 3 Phase | 20 Grid In Series, MPPT Grid Voltage 26-28 VDC, 16 Grid In Series, MPPT Grid Voltage 33-36VDC |
| FRONT PANEL | |
|---|---|
| Indicator and Buttons | Graphic LCD Panel, Menu Select and Menu Set Buttons |
| Warning Messages | Input Fuse/Operating Mode/Inverter Synchronization/DC Input High- Low/Inverter Over Load/Internal Over Temperetaure /Inverter Over Temperature/IGBT SCR Fuse Fail/Inverter Output High-Low |
| Viewing Measured Values | Output Voltage/Output Frerquency/Inverter Load Level/DC Bus Voltage/Internal Temperature /Event History |
| Adjusting Parameters | Date/Time /Alarm Sound Level/Communication Slave Number/Led Test |
| Sound Alarm | On Warning Messages 2 Short ‘beep’ per 2 seconds |
| Communication | RS 485 – Modbus – TCP/IP communication are available to monitor and remote parameter setting (Optional) |
| PROTECTION DEVICES AND ENVIRONMENTAL CONDITIONS | |
|---|---|
| Access to Cabin | Front Access |
| Level of protection | IP 21 as Standard; IP42 with Front Access as Option |
| Permitted temperature range | <95% |
| Maximum height above sea level | 1000 m ASL |
CATALOGUE
